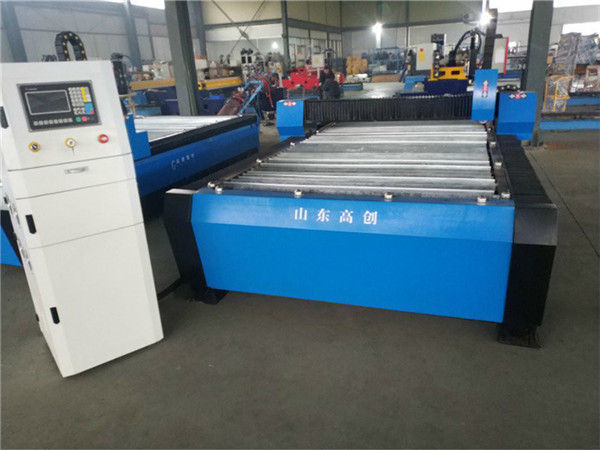

Piccola macchina da taglio al plasma CNC Jinan CE Profession 1325
Informazioni basilari


Customized: Customized
Condizioni: Nuovo
Color: Customized
Area di lavoro: 1300 * 2500mm
Idling Speed: 15.000mm/Min
Working Speed: 10.000mm/Min
Precision: 0.07mm
Positioning Accuracy: 0.02mm
Machine Structure: Channel Steel Lathe Bed,Serrated Table

Descrizione del prodotto


Product Overview
Plasma series is mainly applied to non-insulating material cutting,According to material thickness,power source of different current are correspondent choices to best fit precision request.

Caratteristiche
1.Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2.Indline design under table surface makes finshed parts and scrap slide down to both side along,convenient and safe for operator.
3.DSP-hand-held control system dedicated for plasma machine,supports file reading from U disk or downloading from computer,providing high independence and great convenience duringoperation.
4.Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5.High sensitivity THC(Torch Height Controller)is optional for auto adjustment to cutting distance and cutting precison.
6. Plasma cutting machine Y axis adopts double moters with double drivers. XYZ axis round raill, moving smoothly, with high accuracy. (Option: Square rail)
7. Excellent cutting 3D illuminated letters for advertising and channel letters on metal surface board.
8. Arc voltage height controller
9. Small cutting gap, no residua.
10. Plasma Cutter working together with other advertising machines, such as CNC Router etc, improving working efficiency
11. Superior plasma power, Taiwan linesr rail, ensure vertical section, more percision.
12. US. Haibao power and domestic Huanyuan power
13. Drive system uses a system of Beijing Stuart

Specifica tecnica


ModelloQL-1325 macchina da taglio al plasma
Dimensioni di lavoro1300x2500mm
Ripeti la precisione di posizionamento± 0,05 millimetri
Velocità di viaggio0-24000rpm / min
Velocità di taglio100-8000mm/min
Tensione di funzionamentoAC380 / 50Hz
Modello di trasmissioneTrasmissione a cremagliera
Sistema di trasmissionehigh-precision, zero clearance increased linear guide + rack
Sistema di taglioSistema di taglio Beijing Stuart (inglese)
autistaRay plug drives 860
(Sino-us joint venture large drives
Alimentatore al plasmaImported US Haibao or Domestic Huayuan
Spessore di taglio6-25mm
Tipo di taglioPlasma / ossi-acetilene o propano
Tensione di ingresso3 phase, 220v/380v±10%
Mode of file transferInterfaccia USB
Alimentazione elettrica65A US Haibao power supply
Modo guidaGuida quadrata importata
Tabella di bordoLama in acciaio sega a dente di mesa
Precisione di posizionamento in linea retta± 0,2 millimetri / 10m
Retta precisione di ripetizione± 0,3 millimetri / 10m
Temperatura ambientale-5 ~ 45 ° C
Umidità<90% Nessuna cementazione
